Cable channel KKR 2-12U
Molded rubber product. It is used in conjunction with KKR 2-12. Rotate 45 degrees.
Product features
-
Housing
- Black rubber
-
Cap
- Elastic yellow plastic
-
Number of channels
- 2
-
Load
- 12 t
-
Channel section
- d 30
-
Dimensions
- 400х250х50 mm
-
Operating temperature
- -50С to +60С
-
Degree of rotation
- 45°
Transport characteristics
-
Weight
- 2.5 kg
-
Estimated volume 1 pc.
- 0,0044 m³
-
Type of packaging
- Stretch film
-
When ordering, a multiple of 5 pcs.
- Cardboard box

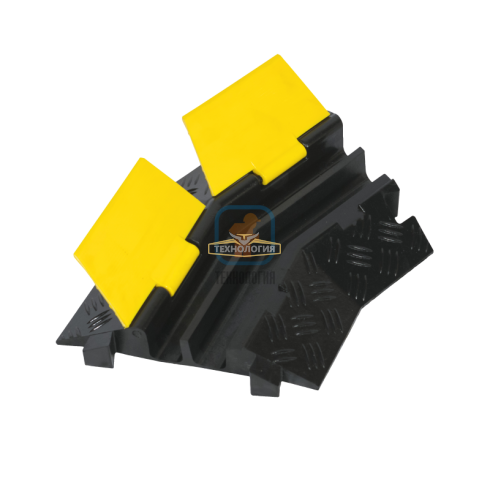

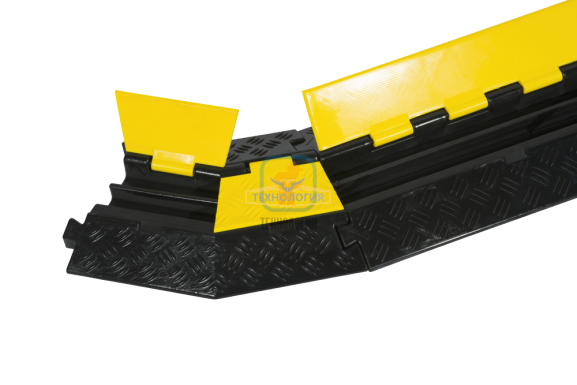

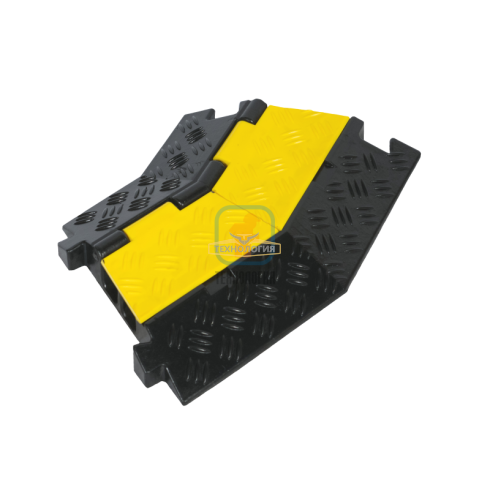

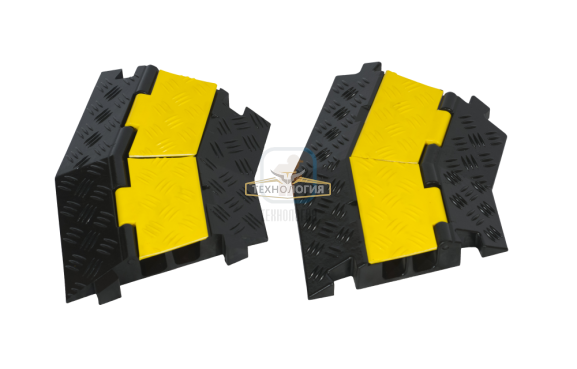

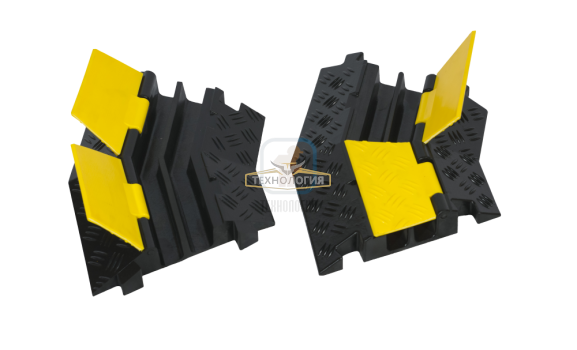

Molded rubber product. Above is a hinged lid made of elastic plastic. Jigsaw connectors are provided at the ends. Rotate 45 degrees. It is used in conjunction with KKR 2-12. The required length of the cable channel is dialed by connecting the desired number of elements.
Benefits and Technology
- Withstands up to 12 tons of load
- Convenient prefabricated design with a puzzle-type lock
- The desired cable channel length is achieved by connecting the elements to each other
- Suitable for cables / hoses / wires with a cross-section of 30x27-32 mm and less
- Protects high voltage wires from damage
- Resistant to mechanical damage
- Serves to protect the health and life of people at the facility
- Withstands temperatures from - 50C to + 60C and sharp temperature drops
- Has an aesthetic appearance
- The product has a fire safety certificate
Usage
It is used to protect wires, cables, hoses during installation, repair work, public events (concerts, exhibitions, demonstrations).Installation
Recommendations
Укладывается на асфальт или на пол. Элементы соединяются It is laid on asphalt or on the floor. Elements are interconnected using a jigsaw puzzle connection. The design is stable due to its mass. If necessary, an anchor can be used.
